Name: High-efficiency precision metal tube fiber laser cutting machine
Rating: 5.0 (50 reviews)

Product Parameters

The main parameters

product name:	Metal tube fiber laser cutting machine
Laser power:	1KW/2000W/3000W
Maximum cutting speed:	120 m/min
cooling method:	Water Cooling
Control System:	Shanghai Aaichu
Axis configuration:	5-axis
servo motor:	Yaskawa
Support image and text formats:	AI、PLT、DXF、AMP、DST
Cutting thickness range:	0-100mm
Cutting area:	6000mm
Laser brand:	Maxphotonics Laser
Industrial laser head brand:	Raytools
Linear guide brand:	PMI
Optical lens brand:	Erliu Machinery
equipment weight:	5000KG
Maximum acceleration speed:	1.5 g
positioning accuracy:	±0.06mm
Maximum processing diameter:	320mm
Cutting length:	12 meters
Power Requirements:	380V three-phase 50Hz
Warranty Service:	3-year warranty for core components
Video factory inspection:	supply

Product Details

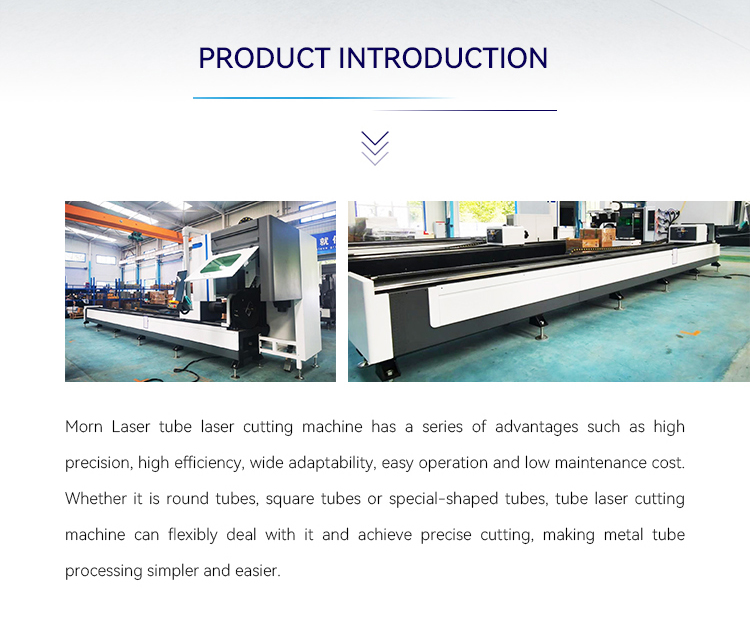

Product Introduction

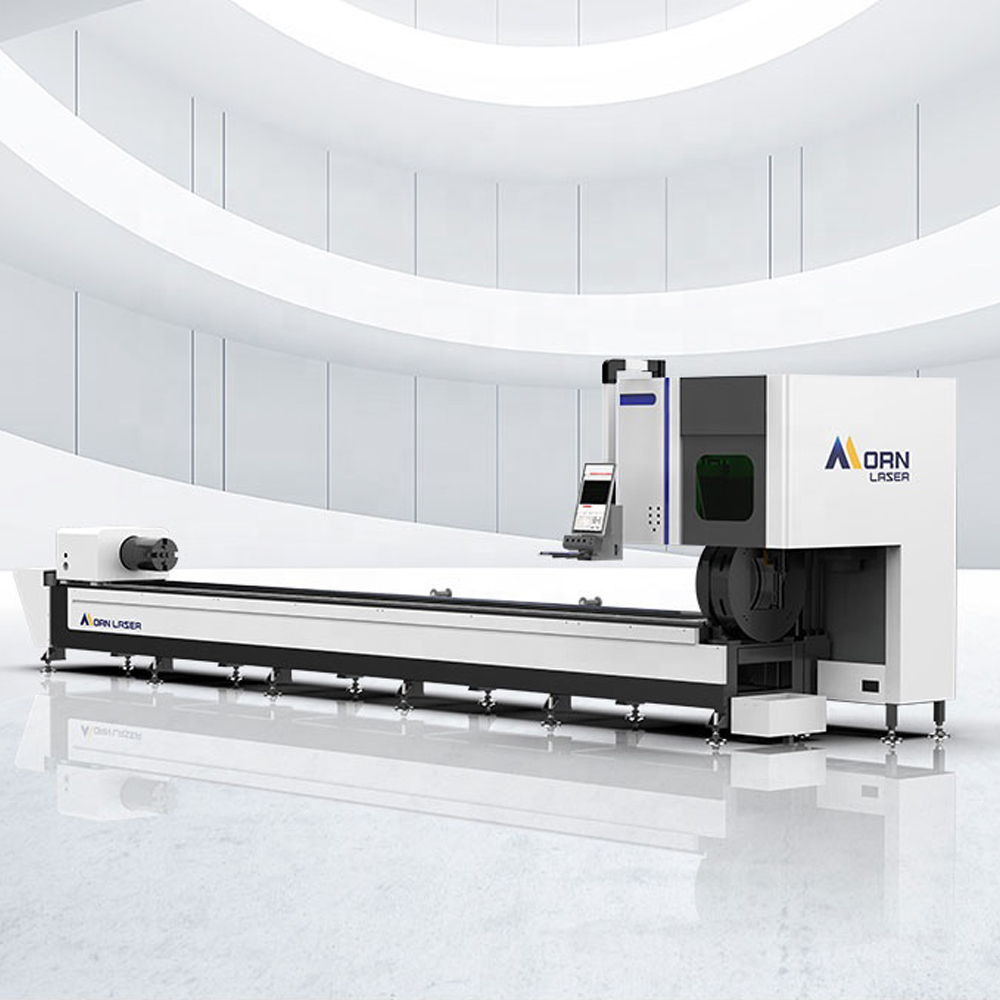

This metal tube fiber laser cutting machine is a high-precision and high-efficiency industrial laser cutting equipment suitable for the processing of metal tubes. Its main technical parameters include optional laser power of 1KW, 2000W and 3000W, maximum cutting speed of up to 120m/min, water cooling, and control system of Shanghai Aochu brand. The cutting machine has a 5-axis configuration and servo motor, can support a variety of graphic formats such as AI, PLT, DXF, AMP and DST, cutting thickness range of 0-100mm, and cutting area of up to 6000mm.
